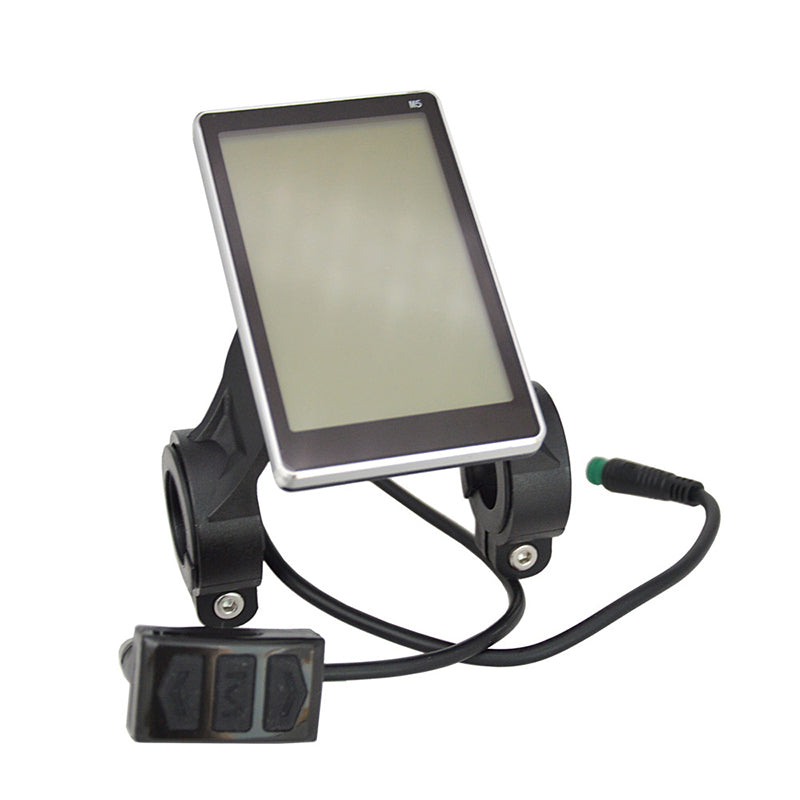

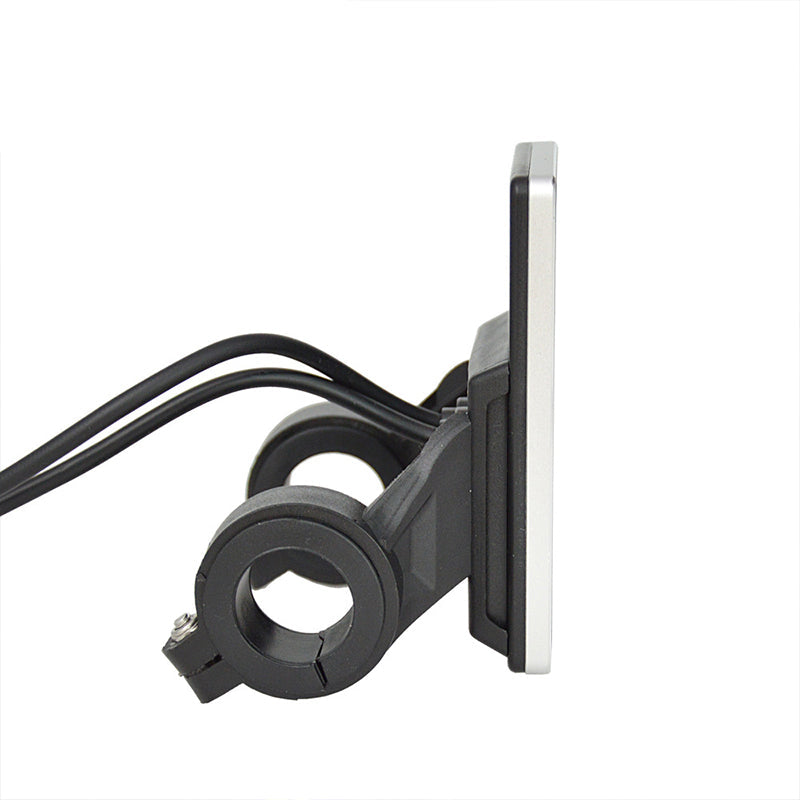

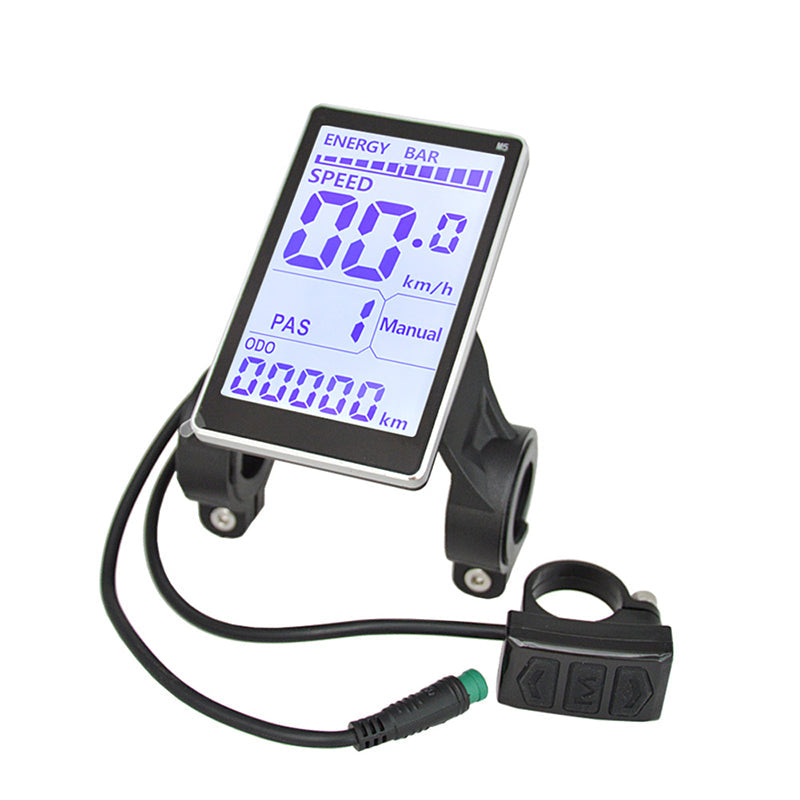

5 - Pin LCD Display Screen for M5 E - bikes: Speedometer & Control Panel, E - bike Accessory
5 - Pin LCD Display Screen for M5 E - bikes: Speedometer & Control Panel, E - bike Accessory
Features

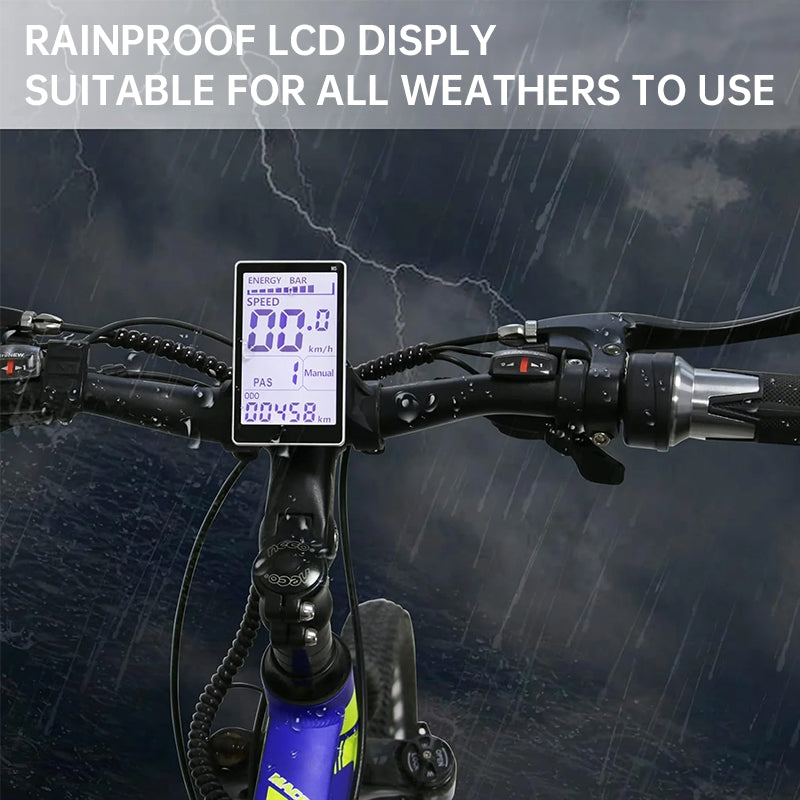

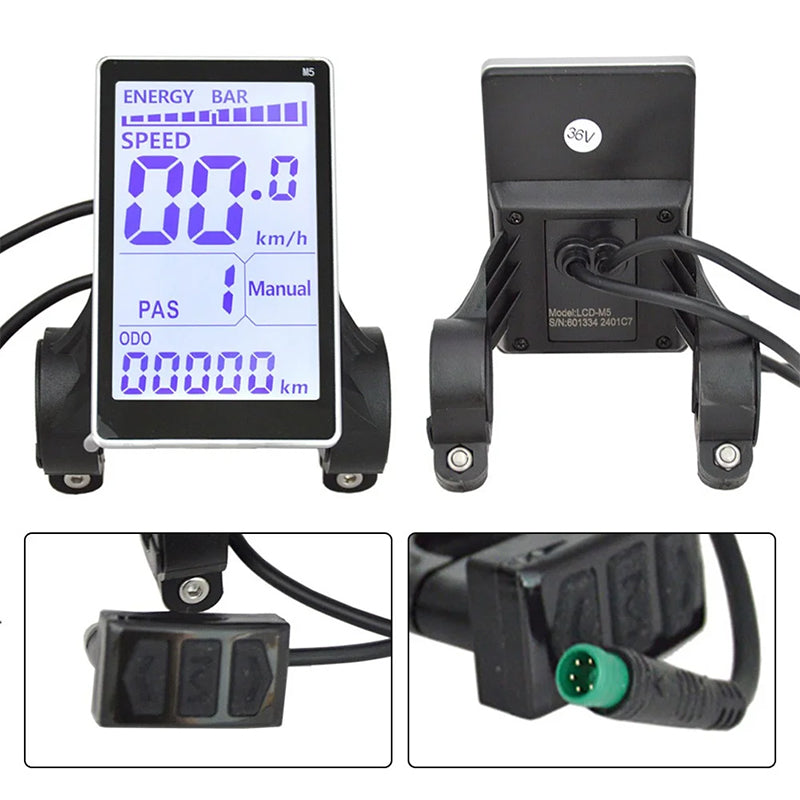

1. Intuitively shows speed, assist level, battery capacity, error code, ODO (odometer), trip distance, light status, and single - ride time.
2. M5 settings cover battery power button, front light button, 6 km/h walking mode, wheel diameter setting, maximum speed setting, sleep time, backlight adjustment, and voltage setting.
3. Note: The communication protocol of the smart LCD instrument is Protocol No. 2.

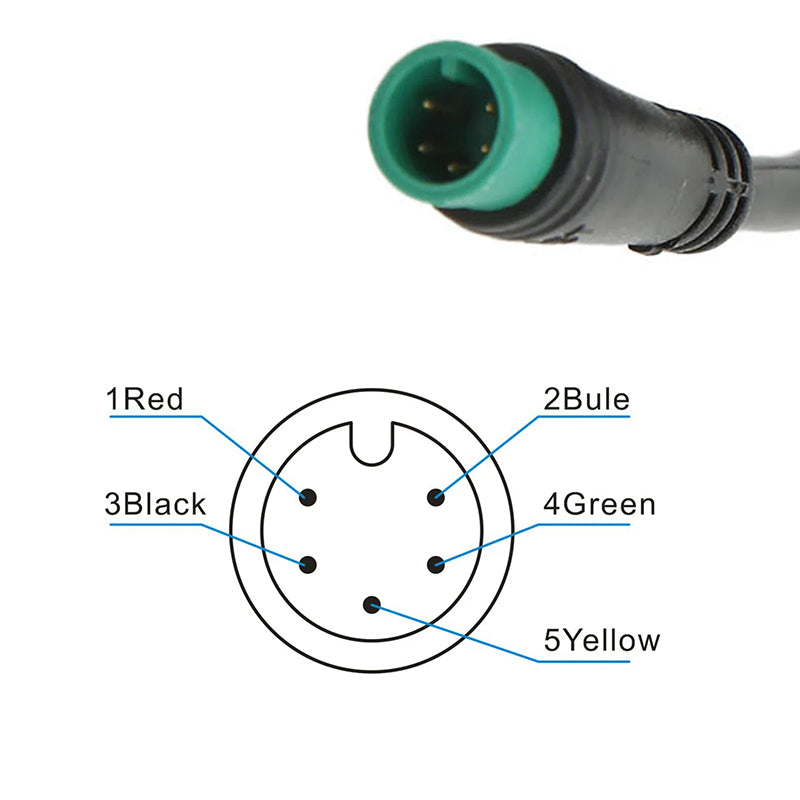

Wiring
- Red wire: Power positive (+)
- Blue wire: Power switch
- Black wire: Power negative (-)
- Green wire: Receive (RX)
- Yellow wire: Transmit (TX)
Description
1. Material: ABS
2. Dimensions: 9.4x8.8x6.4cm
3. Cable length: 2m
4. Weight: Approximately 230g
Package Contents
1 x M5 Display
